H20 beam

Our H timber beams are composed of solid wood (Chinese pine, radiate pine, other pine) or LVL flange, and solid plywood, particle board or OSB web. H20 timber beams are widely applied in slab formwork system, wall formwork system, column formwork system, timber structures, and other temporary bearing structures.

H20 beam

Plastic capped ends: with the protection of plastic caps, H beams can bear commonly direct clash and frication, while their prefect and conspicuous appearances are really popular.

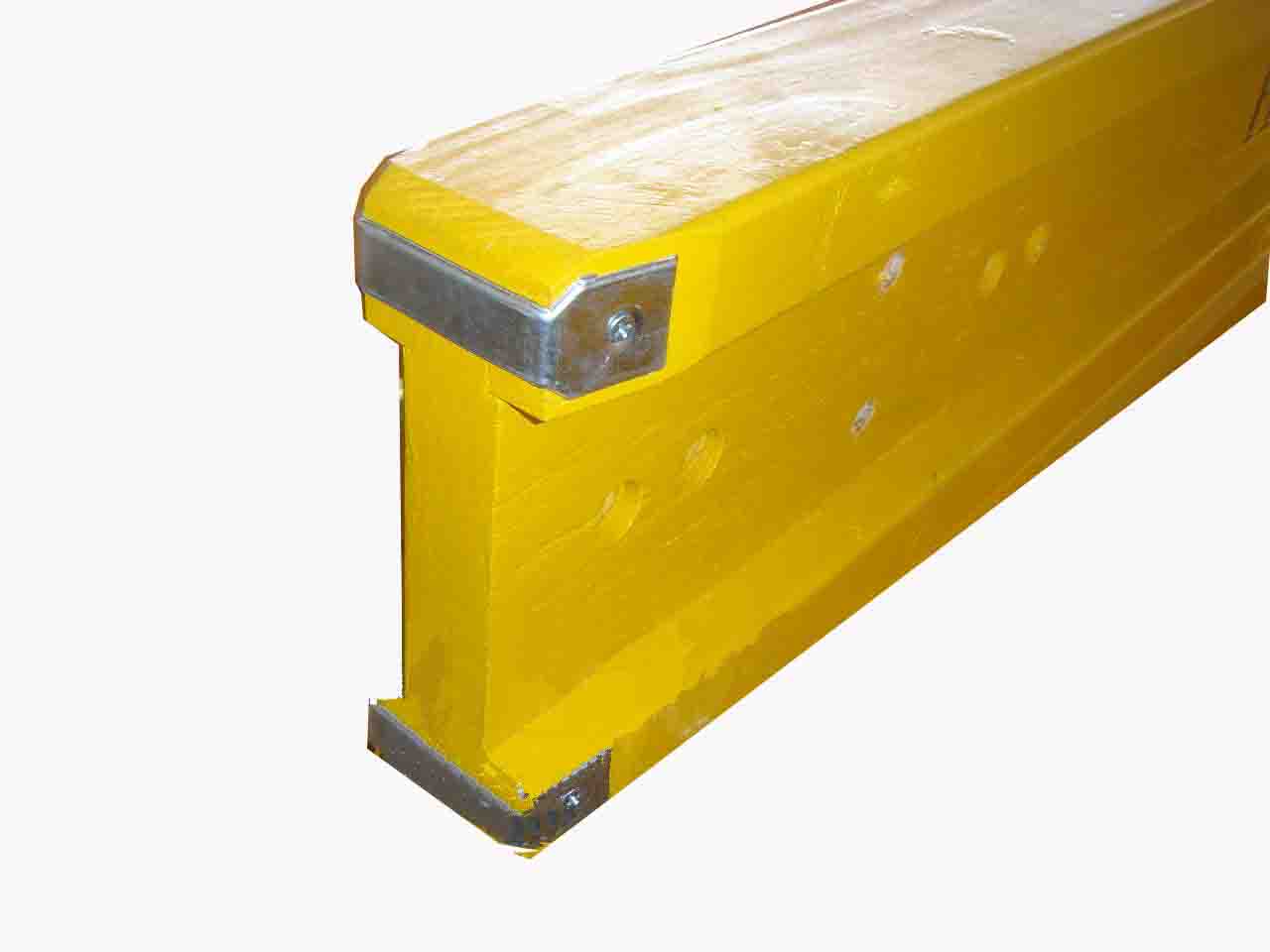

The PUV and metal capped ends are also available for us.

H20 beam

H20 beam

H20 beam

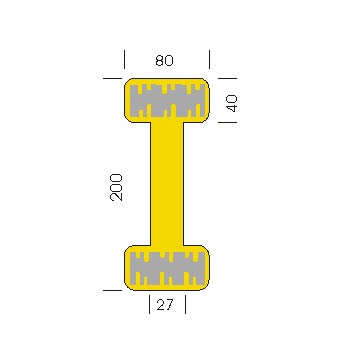

Standard:200 in height, 80 in width
Flange:solid sawn pine lumber flange
Thickness of flange:40mm
Web:Pine plywood
Thickness of web:27-30mm
Glue:WBP phenolic resin
Painting:Yellow,waterproof,fireproof,rot-proof and frozen-proof
Weight per running meter 5.2-6.5kg
Bending moment:Max.5kN/m
Shear force:min 11.0kN
Bending:max 1/500
Available Length:180-245-290-330-360-390-420-450-460-480-590,maximum 600(CM)
H20 beam

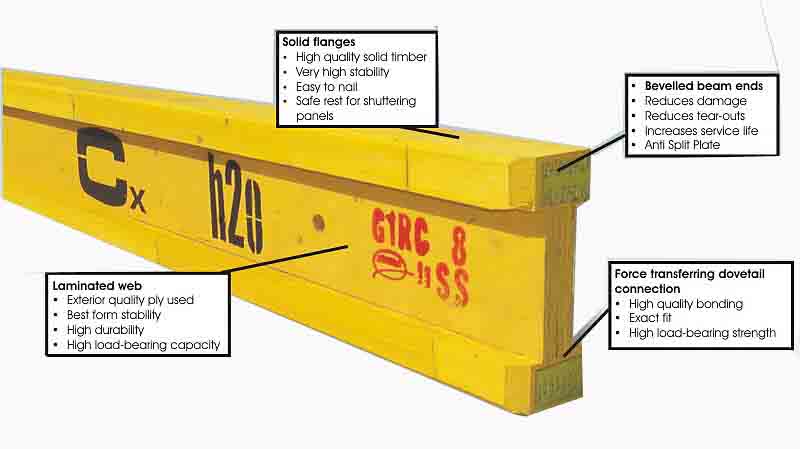

Characteristics:

The scientifically perfect system structure design increase H beams recycling.
• Carefully dried timber, waterproof gluing, and surface coating with synthetic resin ensure dimensional stability, size retention, and a long product life.
• size retention and dimensional stability
• time and cost saving to process
• long service life through high-grade gluing
• protection against damage through specially finished support ends
• Low weight (5 kg per running meter)
